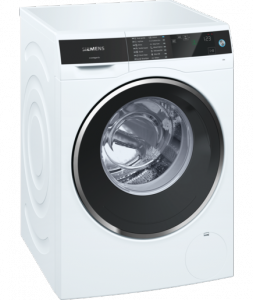

Washing machine Siemens WM4UH640GB

Siemens WM4UH640GB

avantgarde Front loading automatic washing machine WM4UH640GB

Siemens WM4UH640GB
Siemens WM4UH640GB

Download user manual Siemens WM4UH640GB

in PDF format: WM4UH640GB

Wifi-enabled Premium washing machine from design line avantgarde with intelligent i-Dos dosing system and easy use from wherever you are via the Home Connect App.

  • Enjoy outstanding design and exceptional convenience thanks to the inclinedergonomic control panel, intuitive multiTouch Display, and an overall harmonic appearance.
  • Access and control your washing machine, no matter where you are – with the easy-to-use Home Connect App. (available for iOS and Android)
  • The precise i-Dos automatic dosing system measures the detergent for you and helps you save water and detergent.
  • With myTime, you can adjust the duration of the washing program to your individual needs.
  • Intelligent, durable and quiet iQdrive motor with 10-year warranty for highly effective and efficient laundry care.



Performance

  • Energy efficiency class: A+++
  • Capacity: 9 kg
  • Maximum spin speed: 1400 rpm
  • B spin class
  • Energy consumption :98 kWh per year, based on 220 standard washing cycles
  • -50% more economical (98kWh/year) than the standard value (217 kWh/year)
  • Energy consumption: standard 60 °C cotton programme 0.55 kwh full load and 0.39 kwh partial load and 40 °C cotton programme 0.33 kwh partial load
  • Water consumption 11220 litres per year, based on 220 standard washing cycles
  • Cottons 60 Eco and Cottons 40 Eco are the standard washing programmes to which the information in the label relates. These programmes are suitable to clean normally soiled cotton laundry and are the most efficient programmes in terms of combined energy and water consumption.
  • Programme time:60 °C cotton programme 315 min at full load 315 min at partial load and 40 °C cotton programme 300 min partial load
  • Duration of the left-on mode: 15 min
  • Drum volume: 65 litres
  • Weighted power consumption off-mode / left-on mode: 0.12 W / 0.43 W
  • Noise level washing : 47dB (A) re 1pW: Noise level spinning:71dB (A) re 1 pW
  • Noise level spinning:71dB (A) re 1 pW:

Programmes/functions

  • Special programmes: textile guard re-proofing programme, shirts/blouses, mixed fabrics, rinse/spin, automatic soft, Duvet, drum clean with reminder, Standard cold – 40°C, delicates
  • options: waterPlus, prewash, night wash, less ironing, extra rinse cycles, i-DOS 1, i-DOS 2, memory, soaking 10-20-30 min, speedPerfect, ecoPerfect,
  • Programmes via Home Connect app: Stain – Blood, Stain – Butter/Oil, Stain – Grass, Stain – Red wine

Key features

  • Home Connect: Remote Monitoring and Control, Energy management
  • i-DOS: intelligent dosing system
  • varioPerfect:speed or energy efficiency with perfect wash performance every time
  • Exceptional convenience thanks to the inclined ergonomic control panel
  • waterPerfect Plus: water management system
  • Consumption indicator: Information about water and energy consumption prior to start of programme
  • antiVibration Design – for more stability and quietness
  • Reload function: Pause the already running washing machine to add any forgotten items of laundry to the drum.

Additional features

  • iQ Drive
  • Large touch-LED-display for programme status indication, temperature selection, max. spin speed, remaining time and 24 h end time delay, child lock and load recommendation
  • Inclined ergonomic control panel, slide-under at height of 85 cm
  • waveDrum – Gentle washing thanks to a unique drum structure
  • DrumClean with reminder function
  • Time delay 24 hours and time remaining indicator
  • autoLoad Plus
  • hydroSensor monitors and controls rinse cycles
  • hydroSafe – 24 hour anti-leak protection
  • Noise insulation package
  • Drum interior light
  • Electronic child safety package
  • Flow-through sensor for optimum water use
  • Foam detection system
  • Out of balance load adjustment
  • Bottom Cover

Technical Information

  • Dimensions (H X W X D): 84.5 x 59.8 x 62 cm
  • Slide-under installation
  • integrated 32 cm porthole, chrome-black with 130° opening door

Technical Information

General

  • Dimensions of the product (mm)
    845 x 598 x 620 mm
  • Installation type
    Freestanding
  • Capacity (kg)
    9.0 kg
  • Max. spin speed (rpm)
    1,363 rpm
  • Energy efficiency
    A+++: exceptionally efficient
  • Energy consumption annual (kWh/annum) – NEW (2010/30/EC)
    98
  • Home Connect
  • List of programmes
    Delicates programme, Easy-care programme, Whites and coloureds programme, Woollens hand wash programme
  • Cottons programme
    60°C Eco, Standard cold – 90°C
  • Easy-care programme
    Standard cold – 60°C
  • Wash optimization
    Automatic Soft, Duvet, ON, outdoor/waterproofing, quick wash/mixture, rinsing/spinning, shirts
  • Digital countdown indicator
  • Start delay options
    Continuous
  • Noise level washing (dB)
    47
  • Noise level spinning (dB)
    71
  • Door opening
    Left
  • Water protection system
    hydroSafe
  • Hot & cold water intake
  • Interior light
  • Removable work top
  • Length of electrical supply cord (cm)
    210 cm
  • Power consumption standby/network: Please check the user manual for how to switch off the WiFi module.
    0.9 W

Connection

  • Length of electrical supply cord (cm)
    210 cm
  • Frequency (Hz)
    50 Hz
  • Hot & cold water intake
  • Plug type
    GB plug

Construction type

  • Color / Material body
    White
  • Color / Material panel
    Black, White
  • Construction type
    Freestanding
  • Door opening
    Left
  • Installation type
    Freestanding
  • Type
    Front loader
  • Removable work top
  • Tub material
    Plastic
  • Wheels

Size and weight

  • Depth with open door 90 degree (mm)
    1,142 mm
  • Dimensions of the product (mm)
    845 x 598 x 620 mm
  • Drum volume (l)
    65 l
  • Height-adjustable by
    1.20 cm
  • Net weight (kg)
    77.0 kg

Comfort

  • Programme end indication
    Acoustic
  • Loading sensor
  • Degree of dirtiness recognition
  • Digital countdown indicator
  • Drying progress indicator
    LED-display
  • Noise level spinning (dB)
    71
  • Noise level washing (dB)
    47
  • Turbidity sensor
  • Start delay options
    Continuous
  • Self adjusting water level to load

Programmes

  • Cold wash option
  • Electronic After-sales Service
  • List of programmes
    Delicates programme, Easy-care programme, Whites and coloureds programme, Woollens hand wash programme
  • Cottons programme
    60°C Eco, Standard cold – 90°C
  • Easy-care programme
    Standard cold – 60°C
  • Separate temperature control options
    Steps
  • Wash optimization
    Automatic Soft, Duvet, ON, outdoor/waterproofing, quick wash/mixture, rinsing/spinning, shirts
  • Water plus

Spinning

  • Spin speed options
    Variable
  • Skip spin

Safety

  • Balance control
  • Foam control
  • Water protection system
    hydroSafe







Tags:

4 thoughts on “Washing machine Siemens WM4UH640GB”

    1. Miriam
      Reply

      It is easy, select the program: Press the “Programme” button on the control panel until you reach the Cottons 40 Eco program. Start the program: Press the “Start/Pause” button to begin the washing cycle.

  3. Haridas Raha
    Reply

    I have got a Bosch series/6 i-dos washing machine.Can you tell me how do i open filter vent in lower front of machine
    Thank you

    1. Eric Backham
      Reply

      At the lower front of the machine, you should see a small flap or cover that protects the filter.
      Gently pull or press the flap to open it. You may need to use a bit of force if it’s stuck, but be careful not to use too much pressure to avoid damaging it.
