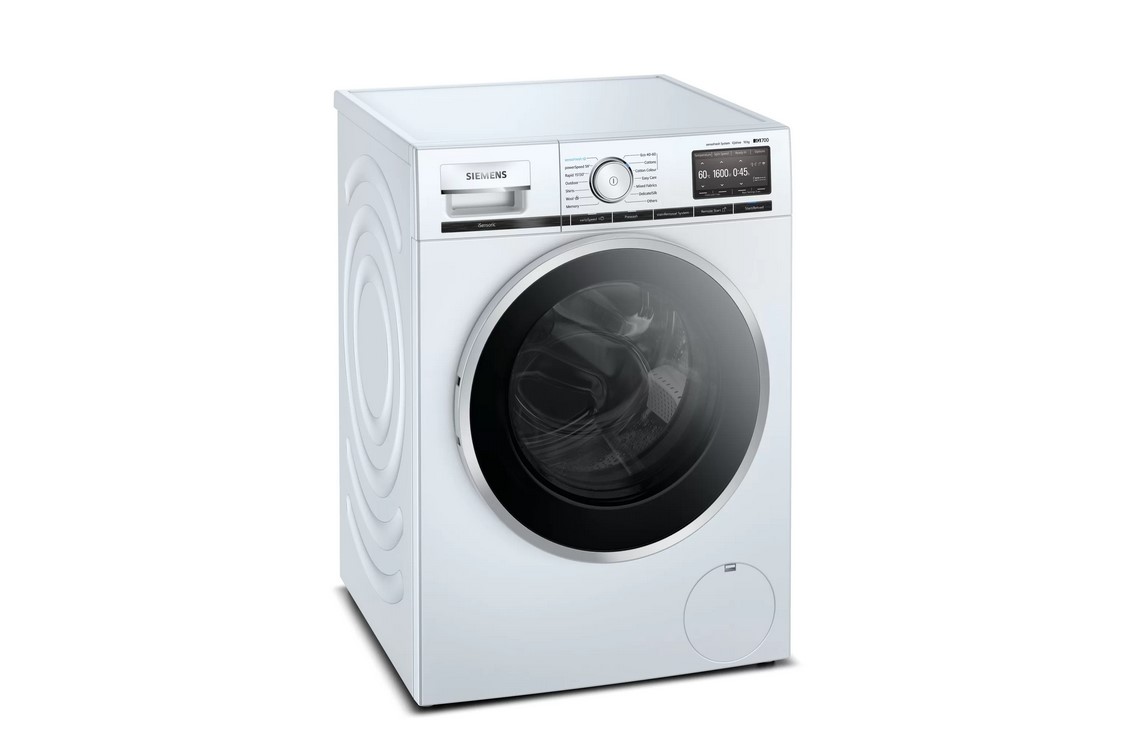

IQ 700 washing machine front loader 10 kg 1600 rpm
Download Siemens WM16XFH4GB user manual in PDF format: Siemens-WM16XFH4GB
Wifi-enabled washing machine with Home Connect: Remove odours with the sensoFresh system and save time with the integrated speedPack.
Product details
Performance
- Energy Efficiency Class:A+++
- Capacity:10 kg
- Maximum spin speed:1600 rpm**
- Aspin class
- Energy consumption :Weighted p.a. E-Consump. EU: 167 kWhkWh per year, based on 220 standard washing cycles
- Energy consumption: standard 60 °C cotton programme0.98 kWhfull load and0.55 kWhpartial load and 40 °C cotton programme0.61 kWhpartial load
- Weighted power consumption off-mode / left-on mode:0.1 W/0.5 W
- Water consumption12100litres per year, based on 220 standard washing cycles
- Cottons 60 Eco and Cottons 40 Eco are the standard washing programmes to which the information in the label relates. These programmes are suitable to clean normally soiled cotton laundry and are the most efficient programmes in terms of combined energy and water consumption.
- Programme time:60 °C cotton programme285 minat full load255 minat partial load and 40 °C cotton programme180 minpartial load
- Left-on Mode Duration: 155 min
- Drum volume: 70 litres
- Noise level washing :47dB (A) re 1pW: Noise level spinning:72dB (A) re 1 pW
Programmes/functions
- TFT display: Clear text and high resolution for easy use with display of programme indication, temperature selection, spin speed, remaining time,24 hour time delay and consumption indication
- Touch control buttons:basic settings,On/off,Ready in,stain selection,options,remote start,start/pause with reload function,temperature selection,varioSpeed,prewash,spin speed selection/Rinse Hold
- Standard programmes: cottons, easy care, delicates, wool hand wash
- Special programmes:hygiene,drain,drum clean with reminder,shirts/blouses,HygienicSteam Odor Removal,jeans/dark laundry,Outdoor,PowerWash 59,Spin,mixed fabrics,single rinse,rapid 15 minute quick wash
- options:extra rinse cycles,less ironing,Soaking,auto stain (16 options),sensoFresh,night wash,speedPerfect,Rinse hold,prewash,waterPlus
Key features
- Home Connect: Remote Monitoring and Control, Energy Management
- sensoFresh Programme: Effective odour removal in short time, even for sensitive and non-washable fabrics
- powerSpeed system: better washing results in less time
- Consumption indicator: Information about water and energy consumption prior to start of programme
- autoStain removal system (ASR)with 16 stain options
- iQdrive with 10 year warranty
- antiVibration Design – for more stability and quietness
- Sound insulation by additional noise reduction material
- Reload function: Pause the already running washing machine to add any forgotten items of laundry to the drum.
Additional features
- Jog dial with integrated on/off control
- waveDrum: for highly effective and extremely gentle laundry care
- Precise load detection upon program start thanks to intelligent measuring technology.
- waterPerfect Plus: water management system
- Flow-through sensorfor optimum water use
- drum interior light
- drum clean with reminderfunction
- Consump indicator energy+water,autoLoad Plus,autoStain removal system (ASR)
- Foam detection system
- Out of balance load adjustment
- Electronic child safety package
- Acoustic signals: Multi-tone
- Detergent dispensing: easy clean
- aquaStop: Siemens home appliance with lifetime warranty against water damage*
Technical Information
- Slide-under installation
- Largechrome-blackdoor with180° opening and 32cm porthole opening
- Dimensions (H x W):84.8 cmx59.8 cm
- Appliance depth:59.0 cm
- Appliance depth incl. door:63.2 cm
- Appliance depth with open door:108.5 cm
Hi, what does error F34 mean in the Siemens IQ700 washing machine?
Error F34 signals an open door.
Close the door properly (clicks audibly). In particular, a full loadmay prevent the door from being closed properly. Also check whether an item of washing is jammed between the door and housing. Restart the programme.
