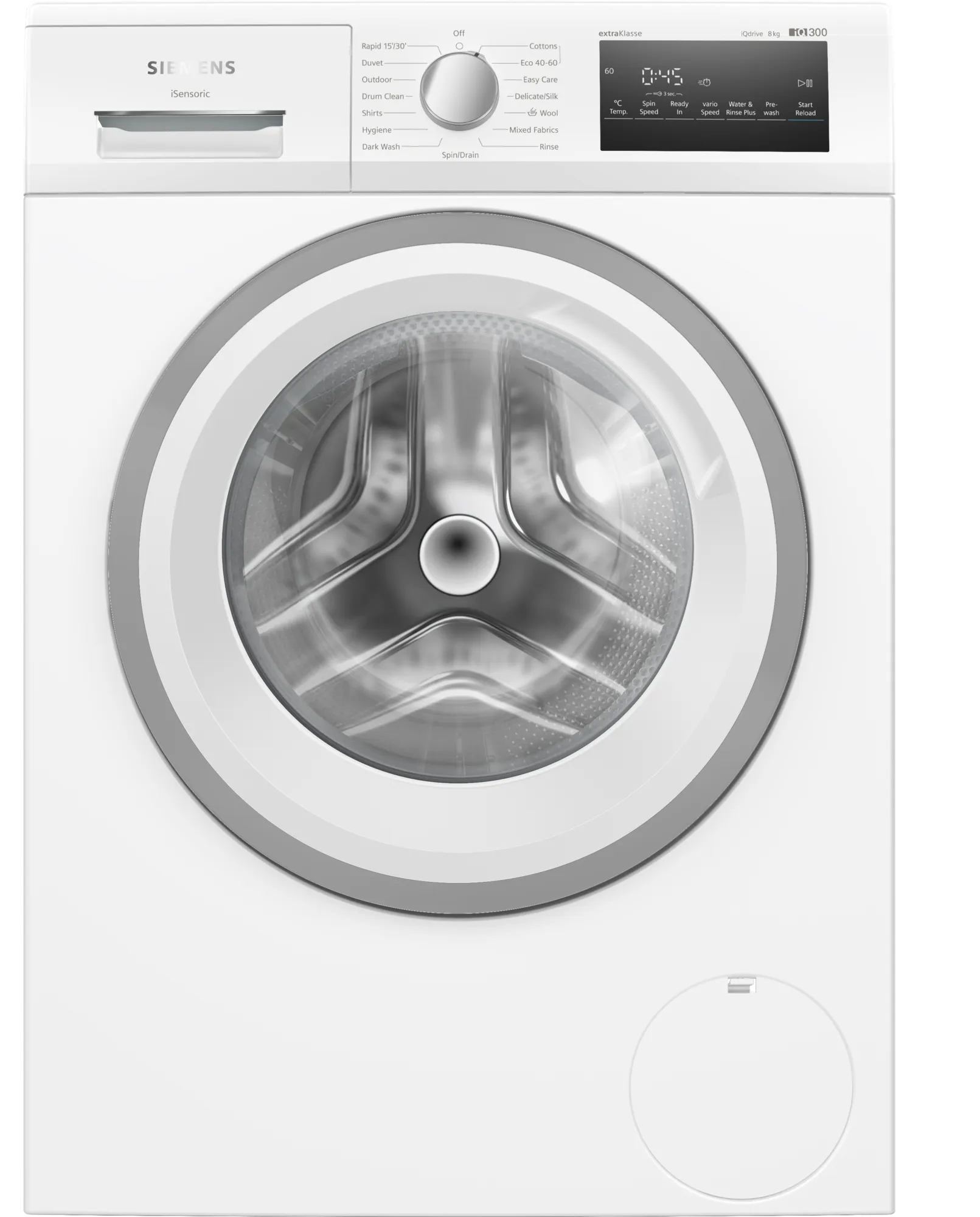

iQ300 Washing machine, front loader 8 kg 1400 rpm
PDF User manual and installation instructions: WM14NK09GB
Speed up your wash – with many options.
Need to get the laundry done fast? Now you can, with the time-saving varioSpeed option. Speed up a programme, or wash your laundry in record time with super15′ and super30′.
Our most energy-efficient washing machine.
Energy label A washing machines for efficient and perfect washing results.
Clear visibility, easy to use
The LED display shows all relevant information clearly, such as remaining time or individual settings and is easy to use thanks to the touch buttons. All options are easy to select and clear to read.
For especially gentle treatment of your laundry: waveDrum.
The innovative structure of the waveDrum with its unique wave shape and the asymmetrical paddles complement each other perfectly. For especially gentle treatment of your laundry.
General
Design
Freestanding
Colour
White
List of programmes
Delicates programme, Easy-care programme, Whites and coloureds programme, Woollens hand wash programme
Wash optimization
Dark Wash, drain / spin, duvet, mixed fabrics, Outdoor, prewash, rapid 15 minute quick wash, Ready in, shirts/blouses, single rinse, spin speed selection, start/pause with reload function, temperature selection, varioSpeed
Water protection system
Multiple water protection
Removable work top
No
Energy Efficiency Class1
A
Airborne acoustical noise emissions
71 dB(A) re 1 pW
Airborne acoustical noise emission class
A
Maximum capacity in kg
8.0 kg
Energy Efficiency Index for the washing cycle
50.7
Washing efficiency index eco 40-60 programme
1.031
Spin-drying efficiency class of eco 40-60 programme
B
Energy consumption in kWh per kg per cycle of eco 40-60 programme
0.461 kWh
Door opening
Left
Max. spin speed
1,400 rpm
Size and weight
Dimensions of the product
848 x 598 x 590 mm
Depth with open door 90 degree
1,063 mm
Drum volume
63 l
Height of removable worktop
0 mm
Weight
70.5 kg
Length of electrical supply cord
210.0 cm
Size and weight
Comfort
i-Dos
No
Load display with dosage recommendation
No
Reload function
Yes
Loading sensor
Yes
Degree of dirtiness recognition
No
Digital countdown indicator
Yes
Drying progress indicator
LED-display
Turbidity sensor
No
Water plus
Yes
waterPerfect
No
waterPerfect Plus
Yes
Start delay options
Continuous
Self adjusting water level to load
Yes
Interior light
No
varioSoft drum
No
iQdrive
Yes
Hot & cold water intake
No
Speed options
varioSpeed
No
Quick wash
Yes
speedPerfect
Yes
Programmes
Allergy Plus program
No
Sportswear programme
No
Down programme
Yes
Delicates & Silk programme
Yes
Wool programme
Yes
Down programme
No
Outdoor programme
No
stainRemoval
No
Cold wash option
Yes
Pre-wash
available
Cottons programme
Standard cold – 90°C
Easy-care programme
Standard cold – 60°C
Separate temperature control options
Steps
Wash optimization
Dark Wash, drain / spin, duvet, mixed fabrics, Outdoor, prewash, rapid 15 minute quick wash, Ready in, shirts/blouses, single rinse, spin speed selection, start/pause with reload function, temperature selection, varioSpeed
Water plus
Yes
Connectivity
Home Connect
No
Safety
Balance control
Yes
Foam control
Yes
Water protection system
Multiple water protection
Child Safety
Yes
hello, what does error E29 mean?
Hi Alan, the display with error code E29 indicates that the water pressure is too low. Check the water pressure directly on the tap using a bucket. Approximately 10 litres of water per minute must flow out of the fully open tap.
Error code E13 on IQ 300. tried to select plain washing programme and then error code popped up immediately
E13 – Confirmation using the Start button too short or too long
Hi What does error code E13 mean on Siemens IQ300. This was installled in a new apartment during 2008 however these apartments were not occupied until 2015
Error E33 lights up again on the display, what to do?
Problem E33: Especially in the case of slightly soiled washing and in the case of curtains, excessive overdosage or use of an unsuitable or old detergent may cause excessive foaming and a discharge of the foam from the detergent drawer.
—–
Reduce the detergent dosage. In particular, when using water which has a low hardness and when washing slightly soiled washing, the amount of detergent should be reduced. Information on dosage can be found on the detergent packaging.
Hi, what does error code E17 mean please?
Hi Daniel, fault E17 means: Too low water pressure.
Check tap, check the water pressure directly on the tap using a bucket. Approximately 10 litres of water per minute must flow out of the fully open tap. Contact your fitter if the water pressure is too low.
