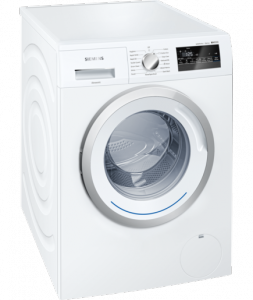

iQ300 Front loading automatic washing machine Siemens
Download user manual Siemens WM14N200GB
in PDF format: WM14N200GB
iSensoric Washing Machine with iQDrive for highly effective and efficient laundry care.
Performance
- Energy Efficiency Class: A+++ -10%
- Capacity: 8 kg
- Maximum spin speed: 1400 rpm
Remaining moisture: 53 % - B spin class
- Energy consumption :176 kWh per year, based on 220 standard washing cycles
- -10% more economical (176 kWh/year) than the standard value (196 kWh/year)
- Energy consumption: standard 60 °C cotton programme 0.95 kwh full load and 0.79 kwh partial load and 40 °C cotton programme 0.56 kwh partial load
- Weighted power consumption off-mode / left-on mode: 0.12 W / 0.5 W
- Water consumption 9900 litres per year, based on 220 standard washing cycles
- Duration of the left-on mode: 15 min
- Cottons 60 Eco and Cottons 40 Eco are the standard washing programmes to which the information in the label relates. These programmes are suitable to clean normally soiled cotton laundry and are the most efficient programmes in terms of combined energy and water consumption.
- Programme time:60 °C cotton programme 200 min at full load 200 min at partial load and 40 °C cotton programme 200 min partial load
- Drum volume: 55 litres
- Noise level washing : 55dB (A) re 1pW: Noise level spinning:76dB (A) re 1 pW
Programmes/functions
- Fully electronic control dial for all wash and special programmes
- Touch control buttons: less ironing, time delay, temperature selection, start/reload, speedPerfect/ecoPerfect, Water & Rinse Plus, spin speed selection
- Special programmes: Rapid 60, Dark Wash, shirts/blouses, textile guard re-proofing programme, mixed fabrics, hygiene, rapid 15 minute quick wash, Duvet, drum clean with reminder, rinse/spin/drain, handwash/wool, delicates
Key features
- varioPerfect:speed or energy efficiency with perfect wash performance every time
- iQ Drive
- antiVibration Design – for more stability and quietness
Additional features
- Large display for programme progress indication, temperature, spin speed, remaining time, 24 h end time delay and load recommendation
- Aquatronic wash system
- Out of balance load adjustment
- Foam detection system
- Detergent over dosage display
- End of cycle buzzer
- Metal door catch
- Electronic child safety package
Technical Information
- Dimensions (H X W X D): 84.8 x 59.8 x 55 cm
- Slide-under installation
- Large titan/white door with 180° opening and 30 cm porthole
Technical Information
General
-
- Dimensions of the product (mm)
- 848 x 598 x 550 mm
-
- Installation type
- Freestanding
-
- Capacity (kg)
- 8.0 kg
-
- Max. spin speed (rpm)
- 1,380 rpm
-
- Energy efficiency class (2010/30/EC)
- A+++: exceptionally efficient
-
- Energy consumption annual (kWh/annum) – NEW (2010/30/EC)
- 176
-
- Home Connect
-
- List of programmes
- Delicates programme, Easy-care programme, Whites and coloureds programme, Woollens hand wash programme
-
- Cottons programme
- Economy, Standard cold – 90°C
-
- Easy-care programme
- Standard cold – 60°C
-
- Wash optimization
- AllergyPlus / Hygiene, dark laundry, Duvet, Easy iron, Intensive/rapid Power Wash 60, outdoor/waterproofing, quick wash/mixture, shirts, Spin speed reduction, Start / Reload, Super 15 min / Super 30 min, Temperature selection, Time delay
-
- Digital countdown indicator
-
- Start delay options
- Continuous
-
- Noise level washing (dB)
- 55
-
- Noise level spinning (dB)
- 76
-
- Door opening
- Left
-
- Water protection system
- Multiple water protection
-
- Hot & cold water intake
-
- Interior light
-
- Removable work top
-
- Length of electrical supply cord (cm)
- 210 cm
Connection
-
- Length of electrical supply cord (cm)
- 210 cm
-
- Frequency (Hz)
- 50 Hz
-
- Hot & cold water intake
-
- Plug type
- GB plug
Hello my WM 14N 200 GB washing machine is leaving oily marks on clothes.
Can you help please?
Hello our washing machine is finished a wash their is a lock and key symbol also a star sign in A semi circle
Hello sir good morning my washing machine when wash the clothes its shut down some time its 10 minute some time 1hour its doing last 3 days don’t know can u help me please
Please can someone advise me. The washing cycle has finished and clothes still wet. What do I do?
Please can someone tell me how to respect the drying time of IQ 300.. It just keep on pausing whenever I push started the it unlock…
Am a user. For days now my machine isn’t able to block automatically when it starts as usual for the reason washing is impossible. It’s keeps bipping and displaying the key 🔑 on the screen. Advise me I can solve this please.
Good evening, push and hold start button few second, the key symbol disappears
Please , could someone tell me what F:43 means ? Because , I cant make my machine work !!!!
Thanks
I’m an trying to wash, spin and empty the water and so far I have washed it multiple times but not able to drain the water nor spin it. What do I need to do. I’m getting frustrated. I’m a new user.
I’m a user. Recently the washing program fail to start and the letter CL are displayed on the screen. Can anyone tell me what It means ?
Does anybody know how to turn off eco perfect? Tried everything and nothing seems to be working ?
Hi, i am an user. Would you please let me know how to disable the child safety lock? My little one actually, locked it.
Hi reza, try push and hold start button few second.
Hi, i am an user. Would you please let me know how to disable the child safety lock? My little one actually, locked it.
