Samsung A42 5G user manual

A42 quad camera

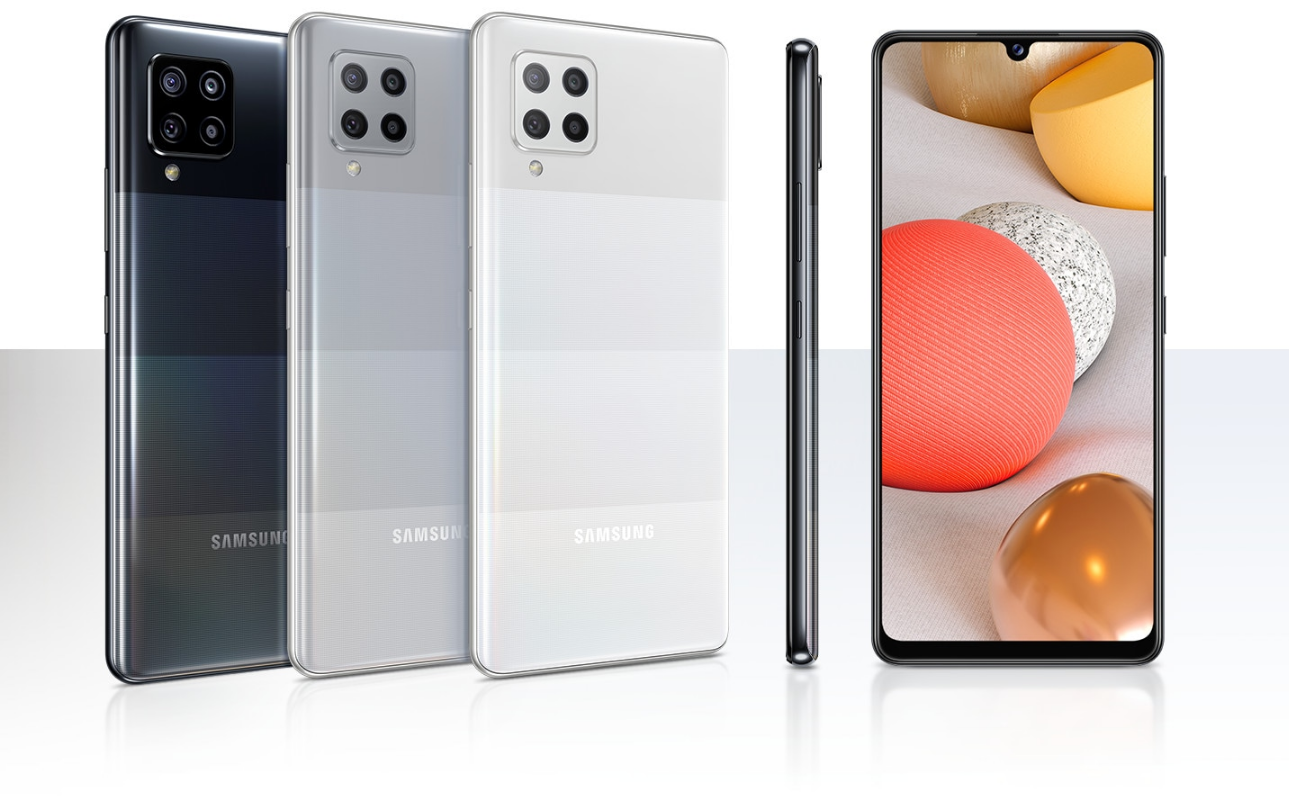

Expand your view to the 6.6-inch Infinity-U Display of Galaxy A42 5G and enjoy an uninterrupted view of everything you love. Thanks to Super AMOLED technology, your everyday content always looks its best—sharp, crisp and clear.

Samsung A42 5G
Samsung A42 5G

Download Samsung Galaxy A45 5G user manual in PDF format: A42-EN

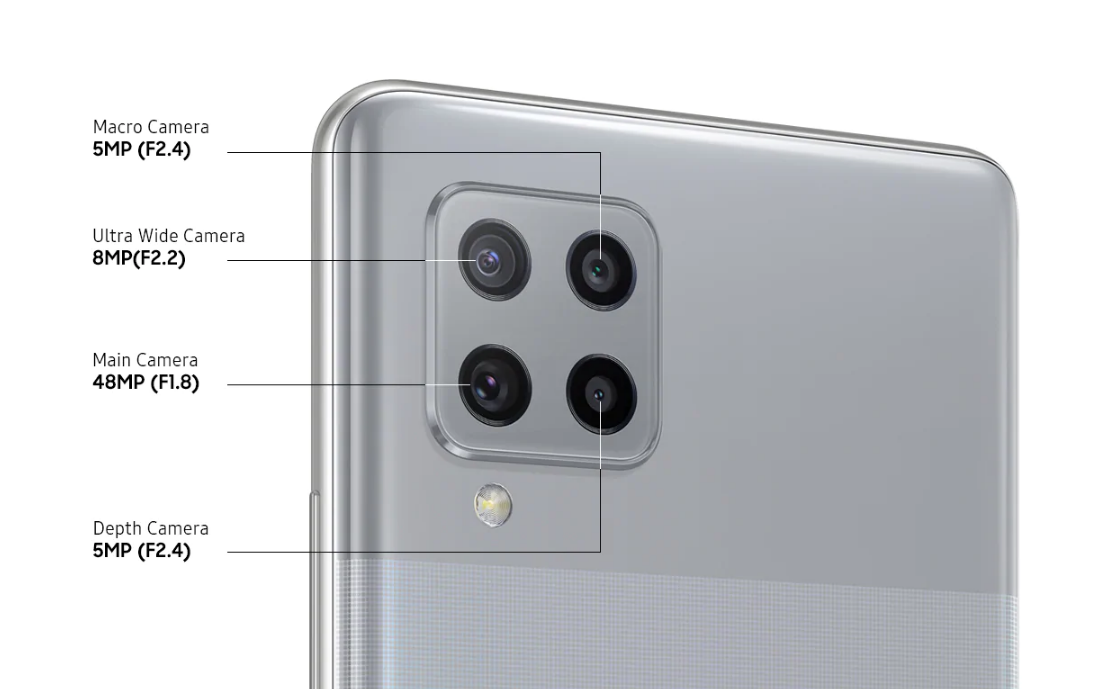

Start with the 48MP Main Camera to capture life’s moments with more clarity. Expand the viewing angle with Ultra Wide Camera. Customise focus with Depth Camera, or get closer to the details with Macro Camera.

Similar to human eyesight, the 8MP Ultra Wide Camera sees the world with a 123-degree angle of view, adding more perspective to everything you shoot.

A42 quad camera
A42 quad camera

Get in close with the 5MP Macro Camera and bring out the ultra-fine details in your picture. It applies natural Bokeh effect to your pictures, allowing your subject to stand out from the background.

The 5MP Depth Camera lets you adjust the depth of field in your photos. With a simple touch, you can easily fine-tune the background blur behind your subject for high-quality portrait shots that truly stand out.



Specifications

  • Processor 2.2GHz, 1.8GHz
  • Weight (g) 193
  • Audio Playback Time (Hours) Up to 130

Processor

  • CPU Speed 2.2GHz, 1.8GHz
  • CPU Type Octa-Core

Display

  • Size (Main_Display) 167.7mm (6.6″ full rectangle) / 164.7mm (6.5″ rounded corners)
  • Resolution (Main Display) 720 x 1600 (HD+)
  • Technology (Main Display) Super AMOLED
  • Color Depth (Main Display) 16M

Camera

  • Rear Camera – Resolution (Multiple) 48.0 MP + 8.0 MP + 5.0 MP + 5.0 MP
  • Rear Camera – F Number (Multiple) F1.8 , F2.2 , F2.4 , F2.4
  • Rear Camera – Auto Focus Yes
  • Rear Camera – OIS No
  • Rear Camera Zoom Digital Zoom up to 10x
  • Front Camera – Resolution 20.0 MP
  • Front Camera – F Number F2.2
  • Front Camera – Auto Focus No
  • Front Camera – OIS No
  • Rear Camera – Flash Yes
  • Front Camera – Flash No
  • Video Recording Resolution UHD 4K (3840 x 2160)@30fps
  • Slow Motion 480fps @HD, 240fps @HD

Memory

  • RAM_Size (GB) 4
  • ROM Size (GB) 128
  • Available Memory (GB) 106.0
  • External Memory Support MicroSD (Up to 1TB)

Network/Bearer

  • Number of SIM Dual-SIM
  • SIM size Nano-SIM (4FF)
  • SIM Slot Type SIM 1 + Hybrid (SIM or MicroSD)
  • Infra 2G GSM, 3G WCDMA, 4G LTE FDD, 4G LTE TDD, 5G Sub6 FDD, 5G Sub6 TDD
  • 2G GSM GSM850, GSM900, DCS1800, PCS1900
  • 3G UMTS B1(2100), B2(1900), B4(AWS), B5(850), B8(900)
  • 4G FDD LTE B1(2100), B2(1900), B3(1800), B4(AWS), B5(850), B7(2600), B8(900), B12(700), B17(700), B20(800), B28(700)
  • 4G TDD LTE B38(2600), B40(2300), B41(2500)
  • 5G FDD Sub6 N1(2100), N3(1800), N5(850), N7(2600), N8(900), N28(700)
  • 5G TDD Sub6 N40(2300), N41(2500), N78(3500)

Connectivity

  • USB Interface USB Type-C
  • USB Version USB 2.0
  • Location Technology GPS, Glonass, Beidou, Galileo
  • Earjack 3.5mm Stereo
  • MHL No
  • Wi-Fi 802.11 a/b/g/n/ac 2.4+5GHz
  • Wi-Fi Direct Yes
  • Bluetooth Version Bluetooth v5.0
  • NFC Yes
  • PC Sync. Smart Switch (PC version)

OS

  • Android

General Information

  • Form Factor Touchscreen Bar

Sensors

  • Accelerometer, Fingerprint Sensor, Gyro Sensor, Geomagnetic Sensor, Light Sensor, Proximity Sensor

Physical specification

  • Dimension (HxWxD, mm) 164.4 x 75.9 x 8.6
  • Weight (g) 193

Battery

  • Internet Usage Time(LTE) (Hours) Up to 21
  • Internet Usage Time(Wi-Fi) (Hours) Up to 22
  • Video Playback Time (Hours) Up to 34
  • Battery Capacity (mAh, Typical) 5000
  • Removable No
  • Audio Playback Time (Hours) Up to 130
  • Talk Time (4G LTE) (Hours) Up to 36

Audio and Video

  • Stereo Support No
  • Video Playing Format MP4, M4V, 3GP, 3G2, WMV, ASF, AVI, FLV, MKV, WEBM
  • Video Playing Resolution UHD 4K (3840 x 2160)@30fps
  • Audio Playing Format MP3, M4A, 3GA, AAC, OGG, OGA, WAV, WMA, AMR, AWB, FLAC, MID, MIDI, XMF, MXMF, IMY, RTTTL, RTX, OTA

Services and Applications

  • Gear Support Galaxy Buds Live, Galaxy Buds+, Galaxy Buds, Galaxy Fit2, Galaxy Fit e, Galaxy Fit, Galaxy Watch3, Galaxy Watch, Galaxy Watch Active2, Galaxy Watch Active, Gear Fit2 Pro, Gear Fit2, Gear Fit, Gear Sport, Gear2 Neo, Gear2, Gear1, Gear S3, Gear S2, Gear S, Gear IconX, Gear IconX (2018)
  • Samsung DeX Support No
  • Mobile TV No
