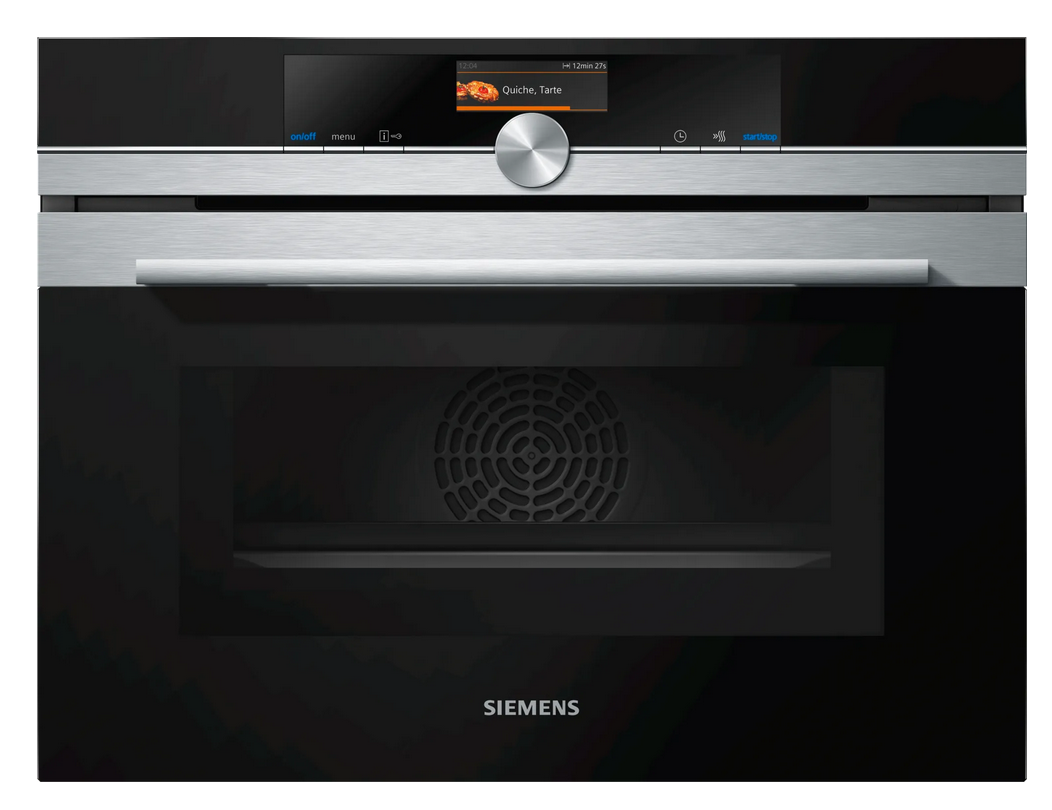

iQ700 Built-in compact oven with microwave function 60 x 45 cm Stainless steel
Download user manual Siemens CM676GBS6B
in PDF format: Siemens-CM676GBS6B
- varioSpeed – Prepare excellent dishes up to 50% faster
- activeClean® – The automatic, self-cleaning oven system
- Home Connect – Experience the intelligent kitchen via app
- cookControl Plus – Build success into your baking
General
Colour/material
Stainless steel
User interface
TFT clear text with knob control
Max. microwave power
900 W
Number of Power Levels (Stck)
5
Microwave power levels
90, 180, 360, 600, 900 W
No. heating modes
13
Heating Types
4D hot air, Bottom heat, conventional top & bottom heating, Deep-frozen food special, Full width grill, Half width grill, Hot Air-Eco, hot air grilling, low temperature cooking, Microwave, Pizza setting, plate warming, pre-heating
Range of temperature (°C)
30-300 °C
addedSteam – for baking and roasting
No
Integrated Cleaning system
Pyrolytic+Hydrolytic
Cavity capacity
45 l
Safety device
childproof lock, door lock electronical, Residual heat indicator, Safety switch-off func oven, start button
Included accessories
1 x combination grid, 1 x universal pan
Size and weight
Minimum height for installation
450 mm
Maximum height for installation
455 mm
Minimum width for installation
560 mm
Maximum width for installation
568 mm
Depth for installation
550 mm
Weight
35.9 kg
Size and weight
Plug type
no plug
Length of electrical supply cord
150 cm
Nominal power
220-240 V
Connection Rating
3,600 W
Fuse protection
16 A
Connectivity
Home Connect
Yes
Home Connect Features
Remote Diagnostics, Remote Monitoring and Control
Power consumption standby/display on
1.0 W
Power consumption standby/display off
0.5 W
Power consumption standby/network: Please check the user manual for how to switch off the WiFi module.
2.0 W
Time auto-standby/display on
20.0 min
Time auto-standby/displ. off
20.0 min
Time auto-standby/network
20.0 min
Comfort
coolStart
Yes
Less time needed for preheating
Yes
Pizza setting
Yes
Memory for individual settings (1 setting)
No
Quick start
No
Supporting systems
Dishes
Design
3.7″ TFT touchDisplay
Drop down oven door, softClose, softOpen
Cavity inner surface: enamel anthracite
3 shelf positions
Stainless steel control dial
Bar handle
We recommend you to choose complementary products within IQ700, in order to assure an optimal design combination of your Built-In appliances.
Features
Digital temperature display with proposal
Actual temperature display Heating-up indicator
Intelligent microwave inverter technology: For optimised results maximum output power will be regulated to 600 W when used in longer operation for gentler cooking.
Electronic door lock
Control panel lock Automatic safety switch off Residual heat indicator Start button Door contact switch
WLAN – Home connect enabled
cookControl Plus
Electronic oven clock timer
LED light, Light on/off when door opened/closed
Integral cooling fan
Cleaning
activeClean
Programmes/functions
Compact oven with microwave with 13 main functions heating methods: 4D hot air, hotairGentle, conventional top & bottom heating, Conventional heat Gentle, hot air grilling, full width grill, half width grill, Pizza setting, coolStart, bottom heat, low temperature cooking, keep warm, plate warming
Additional heating methods with microwave: Microwave, Combi microwave variable
Max. Power: 900 W; 5 Microwave power settings (90 W,180 W,360 W,600 W,900 W)
Fast preheat
Accessories
1 x combination grid, 1 x universal pan
Performance/technical information
Cavity volume: 45 litres
Power cord length 150 cm Cable length
Temperature range 30 °C – 275 °C
Total connected load electric: 3.6 KW
Nominal voltage: 220 – 240 V
Appliance dimension (hxwxd): 455 mm x 594 mm x 548 mm
Niche dimension (hxwxd): 450 mm – 455 mm x 560 mm – 568 mm x 550 mm
Please refer to the dimensions provided in the installation manual
