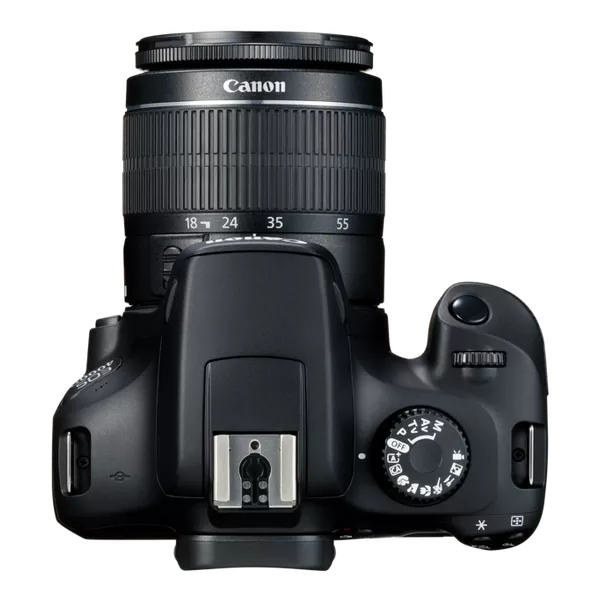

Canon EOS 4000D

Specifications in detail

Image Sensor

• Type
  Approx. 22.3 mm x 14.9 mm
• Effective Pixels
  Approx. 18.0 megapixels
• Total Pixels
  Approx. 18.7 megapixels
• Aspect Ratio
  3:2
• Low-Pass Filter
  Built-in/Fixed
• Sensor Cleaning
  Manual cleaning and Dust Delete Data acquisition
• Colour Filter Type
  RGB Primary Colour

Image Processor

• Type
  DIGIC 4+

• Lens Mount
  EF/EF-S
• Focal length
  Equivalent to 1.6x the focal length of the lens
• Image Stabilisation
  Optical Image Stabilizer provided on compatible lenses

• Type

  Via optical viewfinder:

  TTL secondary image-forming phase-difference detection system with AF-dedicated sensor

  Via live view on LCD screen:

  Contrast detection AF

• AF System / Points

  Via optical viewfinder:

  9 AF points (f/5.6 cross type at centre)

• AF working range

  Via optical viewfinder:

  Centre AF point: EV 0 -18 (at room temperature & ISO100)
  Other AF points: EV 1 -18 (at room temperature & ISO100)

  Via live view LCD screen:

  EV 1 -18 (at room temperature & ISO100)

• AF Modes

  Via optical viewfinder:

  AI Focus (Switches between One-Shot AF and AI SERVO AF automatically)

  One Shot AF
  AI Servo
  Manual

  Via live view LCD screen:

  One Shot AF (Contrast detect AF)
  Quick Mode (via phase detection AF sensor)
  Manual

• AF Point Selection

  Via optical viewfinder:

  Automatic selection from up to 9 points
  Manual selection

  Via live view on LCD screen:

  FlexiZone – Freely position 1 AF point via manual selection
  Live Mode – Automatic selection with face detection

• Selected AF point display
  Indicated by superimposed display in the viewfinder and on the LCD monitor
• Predictive AF
  Yes
• AF Lock
  Locked when shutter button is pressed half way in One Shot AF mode. Customisation available via AE Lock Button
• AF Assist Beam
  Intermittent firing of built-in flash or emitted by optional dedicated Speedlite (effective up to 4.0 m)
• Manual Focus
  Selected on lens

• Metering modes

  Via optical viewfinder:

  Evaluative via 63 zone dual-layer metering sensor (linked to all AF points)
  Partial (centre, approx. 10% of viewfinder)
  Centre-weighted average available

  Via live view on LCD screen:

  Evaluative metering (315 zones)

• Metering Range

  Via optical viewfinder:

  EV 1-20 (at room temperature, ISO 100, evaluative metering)

  Via live view on LCD screen:

  EV 0-20 (at room temperature, ISO 100, evaluative metering)

• AE Lock

  Auto: In 1-shot AF mode with evaluative metering exposure is locked when focus is achieved.

  Manual: By AE lock button in creative zone modes.

• Exposure Compensation
  +/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).
• AEB
  3 shots +/- 2 EV, 1/2 or 1/3-stop increments
• ISO Sensitivity

  AUTO(100-6400), 100-6400 in 1-stop increments ISO can be expanded to H: 12800

  During Movie shooting: Auto (100-6400), 100-6400 (Whole stop increments)

Shutter

• Type
  Electronically-controlled focal-plane shutter, with electronic first curtain
• Speed
  30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)

• Type
  Auto white balance with the imaging sensor
• Settings

  AWB (Ambience priority, White priority), Daylight, Shade, Cloudy, Tungsten, White Fluorescent light, Flash, Custom (Approx. 2000 K – 10000 K).

  White balance compensation:
  Blue/Amber +/-9
  Magenta/ Green +/-9.

• Custom White Balance
  Yes, 1 setting can be registered
• WB Bracketing
  +/-3 levels in single level increments
  3 bracketed images per shutter release.
  Selectable Blue/Amber bias or Magenta/Green bias.

• Type
  Pentamirror
• Coverage (Vertical/Horizontal)
  Approx. 95%
• Magnification
  Approx. 0.80x
• Eyepoint
  Approx. 21mm (from eyepiece lens center)
• Dioptre Correction
  Fixed at -1.0 m-1 (dpt)
  – E-series Dioptric Adjustment Lenses can be used to make dioptric adjustments.
• Focusing Screen
  Fixed
• Mirror
  Quick-return half mirror
• Depth of field preview
  Yes, assigned to SET button
• Eyepiece shutter
  On strap

• Type
  6.8 cm (2.7″) TFT LCD, approx. 230 K dots
• Coverage
  Approx. 100%
• Viewing Angle (horizontally/vertically)
  Approx. 120° vertically
  Approx. 130° horizontally
• Brightness Adjustment
  Adjustable to one of seven levels
• Display Options
  Quick Control Screen
  Camera settings

Flash

• Built-in Flash GN (ISO 100, meters)
  9.2
• Built-in Flash Coverage
  up to 17mm focal length (35mm equivalent: 28mm)
• Built-in Flash recycle time
  Approx. 2 seconds
• Modes
  Auto, Manual Flash On/off
• X-sync
  X-contact not equipped, Max. flash sync speed: 1/200 sec. with compatible Speedlites
• Flash Exposure Compensation
  +/- 2EV in 1/2 or 1/3 increments
• Flash Exposure Lock
  Yes
• Second Curtain Synchronisation
  Yes
• HotShoe / PC terminal
  Yes/No
• External Flash Compatibility
  E-TTL II with EX series Speedlites ³
• External Flash Control
  Available via camera menu screen, except for wireless radio flash shooting settings

Shooting

• Modes
  Scene Intelligent Auto, Creative Auto, Portrait, Landscape, Close-up, Sports, Food, Night Portrait, Program AE , Shutter priority AE, Aperture priority AE, Manual, Movie Mode
• Picture Styles
  Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined (x3)
• Colour Space
  sRGB and Adobe RGB
• Image Processing

  Highlight Tone Priority
  Auto Lighting Optimizer (4 settings)
  Long exposure noise reduction
  High ISO speed noise reduction (4 settings)
  Auto Correction of Lens Peripheral illumination (up to 20 lens profiles can be registered in camera)

  Creative filters (Grainy B/W, Soft focus, Toy camera, Miniature effect, Fish-eye) – during image Playback only

• Drive modes
  Single, Continuous, Self timer (2s, 10s, 10s + continuous shots 2-10)
• Continuous Shooting
  Max. Approx. 3 fps in JPEG until memory card becomes full, 6 images RAW

Live View Mode

• Coverage
  Approx. 100% (horizontally and vertically)
• Frame Rate
  29.97 fps
• Focusing
  Live Mode: One Shot AF (Contrast detect AF)
  Quick Mode: One Shot AF (phase detection AF sensor)
  Manual (Magnification 5x or 10x available)
• Metering
  Real-time evaluative metering with image sensor
  Active metering time can be changed
• Display Options
  Grid overlay (x2), Histogram

File Type

• Still Image Type
  JPEG: Fine, Normal (Exif 2.30 compliant) / Design rule for Camera File system (2.0),
  RAW: RAW (14bit, Canon original RAW 2nd edition),
  Digital Print Order Format [DPOF] Version 1.1 compliant
• RAW+JPEG simultaneous recording
  Yes, RAW + Large JPEG
• Image Size

  JPEG 3:2: (L) 5184 x 3456, (M) 3456 x 2304, (S1) 2592 x 1728, (S2) 1920 x 1280, (S3) 720 x 480
  JPEG 4:3: (L) 4608 x 3456, (M) 3072 x 2304, (S1) 2304 x 1728, (S2) 1696 x 1280, (S3) 640 x 480
  JPEG 16:9: (L) 5184 x 2912, (M) 3456 x 1944, (S1) 2592 x 1456 (S2) 1920 x 1080, (S3) 720 x 400
  JPEG 1:1: (L) 3456 x 3456, (M) 2304 x 2304, (S1) 1728 x 1728, (S2) 1280 x 1280, (S3) 480 x 480

  RAW: (RAW) 5184 x 3456

• Movie Type
  MOV (Video: H.264 inter frame (IPB), Sound: Linear PCM, recording level can be manually adjusted by user)
• Movie Size
  1920 x 1080 (30, 25, 24 fps)
  1280 x 720 (60, 50 fps)
  640 x 480 (30, 25 fps)
• Movie Length
  Max duration 29 min 59 sec, Max file size 4 GB
• Folders
  New folders can be manually created and selected
• File Numbering
  Consecutive numbering
  Auto reset
  Manual reset

• Custom Functions
  10 Custom Functions
• Metadata Tag
  User copyright information (can be set in camera)
  Image rating (0-5 stars)
• Intelligent Orientation Sensor
  Yes
• Playback zoom
  1.5x – 10x enabled in 15 steps
• Display Formats
  (1) Single image with information (2 levels)
  (2) Single image
  (3) Index display (4/9 images)
  (4) Jump Display (1/10/100 images, by Date, by Folder, Movies only, Stills only, by Rating)
• Slide Show
  Image selection: All images, by Date, by Folder, Movies, Stills, Rating
  Playback time: 1/2/3/5/10 or 20 seconds
  Repeat: On/Off
  Transition Effect: Off, Slide 1, Slide 2, Fade 1, Fade 2, Fade 3
  Background Music: On, Off
• Histogram
  Brightness: Yes
  RGB: Yes
• Highlight Alert
  Yes
• Image Erase/Protection
  Erase: Single image, selected images, all images in folder or all images on card
  Protection: Erase protection for single image, all images in a folder or all images in the card
• Menu Categories
  (1) Shooting menu (x4)
  (2) Playback menu (x2)
  (3) Setup menu (x3)
  (4) My Menu
• Menu Languages
  25 Languages
  English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese
• Firmware Update
  Update possible by the user.

Interface

• Computer
  Hi-Speed USB only
• Wi-Fi

  Wi-Fi (IEEE802.11b/g/n), (2.4 GHz only)

  Connectivity to Smart devices is possible via Canon Camera Connect app

• Wi-Fi Security

  Camera Access Point: WPA2-PSK with AES encryption or open

  Infrastructure: Shared key, with WEP encryption, WPA-PSK/WPA2-PSK with TKIP/AES encryption or open

• Other
  HDMI mini (Type-C) output

Direct Print

• Canon Printers
  Canon Compact Photo Printers and PIXMA Printers supporting PictBridge
• PictBridge
  Yes

• Type
  SD card, SDHC card or SDXC card

• PC & Macintosh
  Windows 10 / 8.1 / 7 SP1 ⁹
  Mac OS X 10.10 – 10.13

Software

• Image Processing
  Digital Photo Professional (RAW Image Processing)
• Other

  EOS Utility
  EOS Lens Registration Tool
  EOS Web Service Registration Tool
  EOS Sample Music
  Picture Style Editor

  Camera Connect app available on iOS and Android devices

Power Source

• Batteries
  1 x Rechargeable Li-ion Battery LP-E10
• Battery life
  Approx. 500 (at 23°C, AE 50%, FE 50%)
  Approx. 410 (at 0°C, AE 50%, FE 50%)
• Battery Indicator
  4 levels
• Power saving
  Power turns off after 30 sec or 1, 2, 4, 8 or 15 mins.
• Power Supply & Battery Chargers
  Battery charger LC-E10E

Accessories

• Viewfinder
  Eyecup Ef
  Rubber Frame Ef
  E-series Dioptric Adjustment Lenses
  Eyepiece Extender EP-EX15II
  Angle Finder C
  Magnifier MG-Ef
• Case
  Semi Hard Case EH26-L, EH27-L
  Protecting Cloth PC-E1, PC-E2
  Shoulder Bag SB10, SB100
  Backpack BP10, BP12, BP100
  Messenger Bag MS10, MS11
  Sling Bag SL100
  Holster HL100
• Lenses
  All EF and EF-S lenses
• Flash
  Canon Speedlites (270EX II, 430EX III-RT, 600EX II-RT, Macro-Ring-Lite MR-14EX II, Macro Twin Lite MT-26EX-RT, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT) ¹²
• Other
  Hand Strap E2, HDMI Cable HTC-100, Interface Cable IFC400PCU
